| FS 1000 | ||
|---|---|---|
| Overall Height | 249.07 mm (9.806 in) | |
| Largest OD | 93.22 mm (3.67 in) | |
| Seam OD | 92.86 mm (3.656 in) | |
| Gasket OD | 71.88 mm (2.83 in) | |
| GASKET INSIDE DIAMETER | 62.48 mm (2.46 in) | |
| Thread Size | 1-14 UNS-2B | |
| Standpipe | YES | |
| EMULSIFIED WATER SEPARATION | 95 % (95 %) | |
| FREE WATER SEPARATION | 95 % (95 %) | |
| EFFICIENCY, TWA BY SAE J 1985 | 98.7 % (98.7 %) | |
| MICRON RATING BY SAE J 1985 | 10 micron (10 micron) | |
| Primary Applications | ||
|---|---|---|
| CUMMINS | 3329289 | All Applications |
| TEREX | 15271319 | |
| Product Comments | ||
| Required on all Cummins Select and Quantum 19L Engines (Stratapore) | ||
| Upgrade Of | ||
| FS1212 | – | |
| Is A Longer Version Of | ||
| FS1001 | – | |
| For Marine Applications, Use | ||
| FS1009 | – | |
| Filter Used With | ||
| 142784S | – | |
| 3930618S | – | |
| 3962018S | – | |
| FH126 | – | |
QR Code
Related Products
- desktop-columns-3 tablet-columns-2 mobile-columns-1
-
-
SL Model
د.إ0.000Availability: In stockOut of stock
3 Range Model:
Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C)
Adjustable 90° – 130°F  (32°C – 54°C)
-
WF 2073 Water Filter
د.إ0.000Availability: In stockOut of stock
WF2073
Media Type: Cellulose 60 23
Micron Rating: 60
Coolant Additive: 23 Units
Overall Height inch (mm): 5.43 (137.92)
Thread Size: 11/16-16 UN- 2B -
CTM Model
د.إ0.000Availability: In stockOut of stock
HOTflow™ model CTM was developed to preheat diesel and gas engines for stationary land power, marine and construction equipment.
-

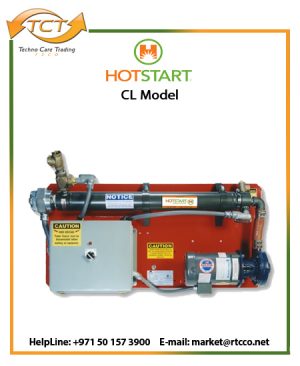

CL Model (Watertight)
