Combined Oil & Coolant Heater
  • grid
  • list

Showing all 5 results

    desktop-columns-3 tablet-columns-2 mobile-columns-1
  • Compare
    Quick View
    Add to cart
    Quick View
    COL Model
    د.إ0.000

    Availability: In stockOut of stock

    COL System Features
    Weathertight components rated NEMA 12
    Viton mechanical seal pumps for extended seal life and temperatures to 350°F
    Flow detection switches for fail-safe operation
    Pressure switch for automatic operation
    Universal mounting for varied mounting configurations
    100° to 120°F thermostat for coolant and 80° to 100°F oil thermostat
    On/Off switch for coolant and oil heating operations

  • Compare
    Quick View
    Add to cart
    Quick View
    DLV System
    د.إ0.000

    Availability: In stockOut of stock

    Specification:

    Heating Fluid: Coolant and Oil
    Coolant Heat Power: 18 – 30 kW
    Oil Heat Power: 6 – 12 kW
    Rated Voltage: 208, 240, 480, 575 V (3Ø 60 Hz)
    220, 380, 400, 415 V (3Ø 50 Hz)
    Temp Controller, coolant: Adj. 32 – 212 °F (0 – 100 °C), preset from factory at 122 °F (50 °C)
    Temp Controller, oil: Adj. 32 – 212 °F (0 – 100 °C), preset from factory at 104 °F (40 °C)
    High-Limit Temperature Protection
    Main Control Box Ingress Protection: NEMA 4 IP66
    Coolant Motor Ingress Protection: IP55
    Oil Motor Ingress Protection: IP55
    Meets Vibration Specification IEC 60068-2-64
    Meets Shock Specification IEC 60068-2-27

  • Compare
    Quick View
    Add to cart
    Quick View

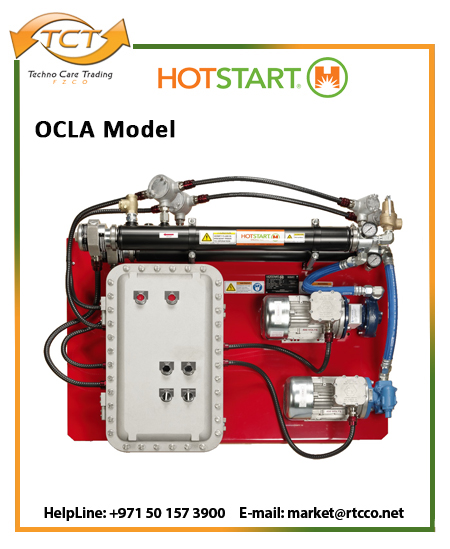

    OCLA System
    د.إ0.000

    Availability: In stockOut of stock

    SPECIFICATIONS

    Heating Fluid: Oil/Coolant
    Heat Power: Oil 2.5 – 12 kW / Coolant 6 – 36 kW
    Voltage Range: 230, 400 V
    Temperature Controller: Adjustable 0 – 100 °C (32 – 212 °F)
    Temperature Setting: Oil 40 °C (105 °F) / Coolant 50 °C (120 °F)
    High-Limit Temperature Control: Adjustable 0 – 100 °C (32 – 212°F)
    High-Limit Temperature Setting: 90 °C (195 °F)
    Fluid Capacity: 3.8 L (1 gal)
    Pump Power: Oil 0.75 – 2.25 kW (1 – 3 Hp)
    Coolant 0.75 kW (1 Hp)

  • Compare
    Quick View
    Add to cart
    Quick View

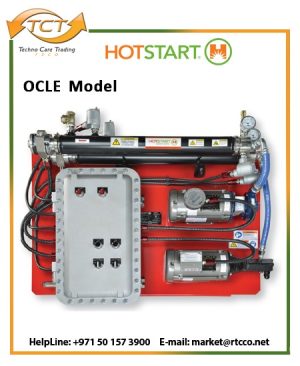

    OCLE Model
    د.إ0.000

    Availability: In stockOut of stock

    Heating Fluid: Oil/Coolant
    Heat Power: Oil 2.5 – 12 kW / Coolant 6 – 36 kW
    Voltage Range: 208, 240, 440 – 480, 575 – 600 V
    Temperature Controller: Adjustable 32 – 212 °F (0 – 100 °C)
    Temperature Setting: Oil 105 °F (40 °C) / Coolant 120 °F (50 °C)
    High-Limit Temperature Control: Adjustable 32–212 °F (0 – 100 °C)
    High-Limit Temperature Setting: 195 °F (90 °C)
    Fluid Capacity: 1 gal (3.8 L)
    Pump Power: Oil 1 – 3 Hp (0.75 – 2.25 kW) Coolant 1 Hp (0.75 kW)
    Maximum Pressure: 100 psi (690 kPa)

  • Compare
    Quick View
    Add to cart
    Quick View
    OCSM Model
    د.إ0.000

    Availability: In stockOut of stock

    •  Primary Heating Fluid: Engine Coolant
    • Secondary Heating Fluid: Engine Oil
    • Heat Power: 6, 9, 12 kW
    • Voltage Range: 1 or 3 Phase 208 – 600V (50 or 60 Hz)
    • Temperature Controller: Fixed 100 – 120 °F (38 – 49 °C)
    • High-Limit Temp. Control: Fixed 165 – 205 °F (74 – 96 °C)
    • Fluid Capacity: Coolant – 0.7 gal (2.6L)
    • Oil – 0.2 gal (0.8L)
    • Pump Power: Coolant – 0.04 Hp (0.03 kW)
    • Oil – 0.33 Hp (0.25 kW)
