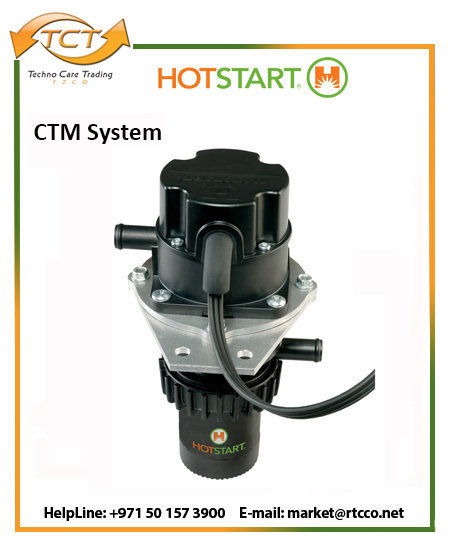

CTM Model
د.إ0.000
HOTflow™ model CTM was developed to preheat diesel and gas engines for stationary land power, marine and construction equipment.
- Heating Fluid: Engine coolant (50% glycol/50% water)
- Heat Power: 1, 1.2, 2.5 kW
- Voltage Range: 1 Phase 120V, 60Hz, 240V 50/60Hz
- Temperature Setting: 100-120°F (38-49°C)
- Ingress Protection**: IP44
- Flow*: 2.5 GPM (.57 m3/hr) @ 1 PSI (.07 bar) in 120
- Flow**: 2.5 GPM (.57 m3/hr) @ 3 PSI (.21 bar) in 240
- Inlet/Outlet: .625 inch (16mm) hose bar
- Cord connected with plug
- For use in weather protected applications
HOTSTART’s CTM HOTflow™ heating system is a complete coolant pre-heater. It features an integrated pump that combines the benefits of forced circulation with a compact design that can mount to a variety of small engine applications. The CTM model heats engines up to 20L displacement. Forced circulation of the coolant delivers uniform heating throughout the entire engine, extends element life and offers a significant reduction in electrical consumption.
QR Code
Related Products
- desktop-columns-3 tablet-columns-2 mobile-columns-1
-
WL Model
د.إ0.000Availability: In stockOut of stock
HOTSTART tank style engine heaters were developed to pre-heat diesel and gas engines for stationary land power, heavy duty mobile equipment, marine and offshore equipment.
-
OCLA System
د.إ0.000Availability: In stockOut of stock
SPECIFICATIONS
Heating Fluid: Oil/Coolant
Heat Power: Oil 2.5 – 12 kW / Coolant 6 – 36 kW
Voltage Range: 230, 400 V
Temperature Controller: Adjustable 0 – 100 °C (32 – 212 °F)
Temperature Setting: Oil 40 °C (105 °F) / Coolant 50 °C (120 °F)
High-Limit Temperature Control: Adjustable 0 – 100 °C (32 – 212°F)
High-Limit Temperature Setting: 90 °C (195 °F)
Fluid Capacity: 3.8 L (1 gal)
Pump Power: Oil 0.75 – 2.25 kW (1 – 3 Hp)
Coolant 0.75 kW (1 Hp) -
Battery Wraps
د.إ0.000Availability: In stockOut of stock
Prolong the life of your battery with HOTSTART thermal battery wraps with or without thermostat.
• Durable, fire-retardant vinyl cover that resists oils and acids.
• All standard battery pads and battery wraps come with 6’ (1.8m) grounded cord and plug.
• Fast, easy installation.
• Boosts battery cranking power as much as 75%. -
EE Model
د.إ0.000Availability: In stockOut of stock
3 Range Model:
Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C
Adjustable 90° – 130° (32°C – 54°C)
-
Silicone Hot Pad
د.إ0.000Availability: In stockOut of stock
Easy peel and stick application
Etched foil heating element for optimal heat transfer and long life.
Durable silicone/fiberglass cover resists abrasion.
120 V models are assembled with a standard 6’ (1.8m) HPN cord and plug.
240 V models include 6’ (1.8m) HPN cord without plug. -
SB Model
د.إ0.000Availability: In stockOut of stock
3 Range Model:
Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C)Adjustable 90° – 130°F (32°C – 54°C)
-
OSE Model
د.إ0.000Availability: In stockOut of stock
Heating Fluid: Oil
Heat Power: 1.5, 2.5 kW
Voltage Range: 480V/60Hz/3ph (Contact HOTSTART for other voltage requirements)
Temperature Controller: Adjustable 32°-212°F (0°-100°C)
Temperature Setting: 105°F (40°C)
High-Limit Temperature Control: Adj. 32°-212°F (0°-100°C)
High-Limit Temperature Setting: 195°F (90°C)
Fluid Capacity: 0.6 gal (2.2L)
Pump Power: 0.75, 2Hp (0.56, 1.5 kW) -
CL Model (Watertight)
د.إ0.000Availability: In stockOut of stock
Pressure switch or relay for automatic operation
Universal mounting for varied mounting configuration
100° to 120°F fixed thermostats
On/Off switch for manual control
Watertight components rated NEMA 12
Viton mechanical seal pumps for extended seal life and temperatures to 350°F
External motor protective switch reset button -
