- Rated Current(A): 63,80,100,125A
- Rated Voltage (V DC): 550/800V DC
- No. of Pole: 2P
- Ultimate Breaking Capacity lcu (kA): 10kA
- Rated short circuit breaking capacity Ics (kA): 10kA
- Weight(gr): 300gr

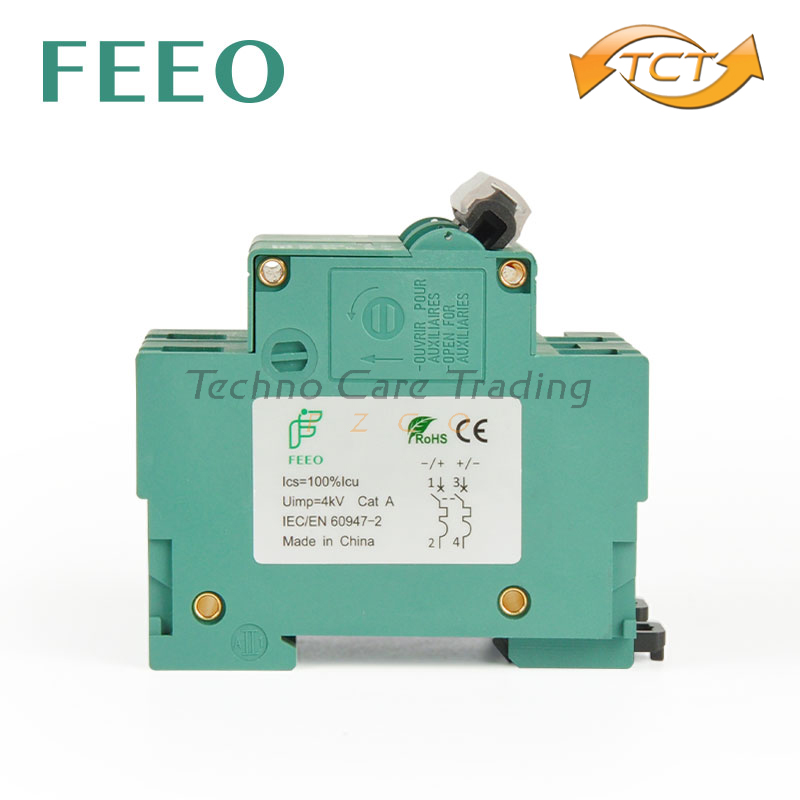

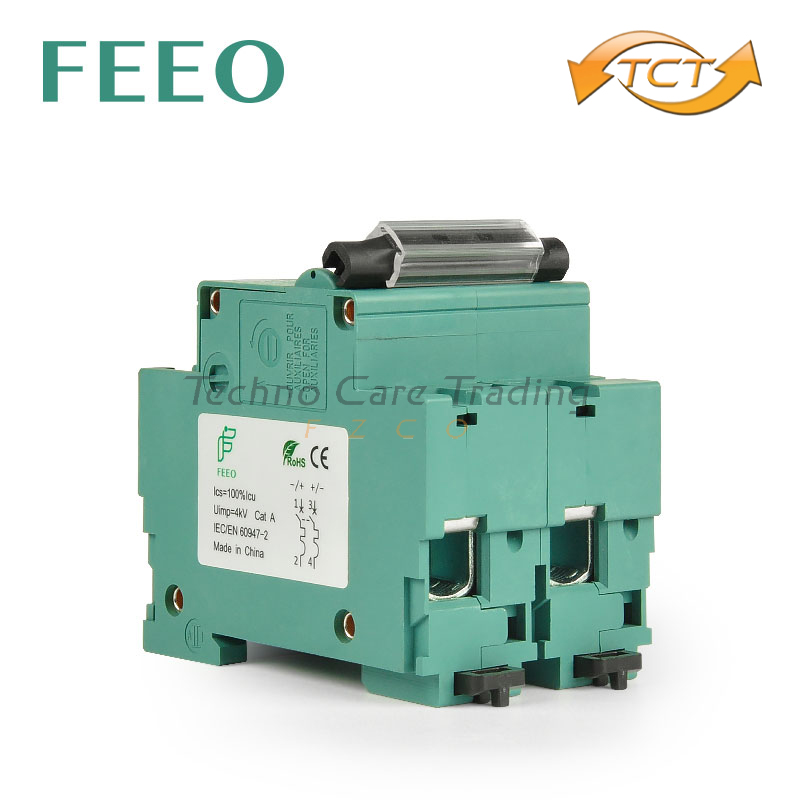

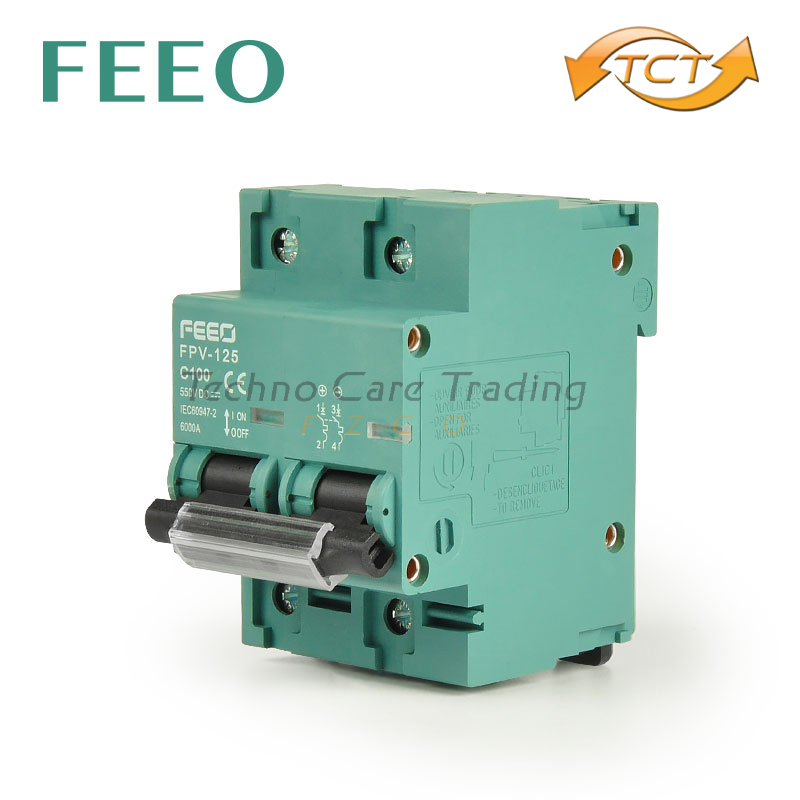

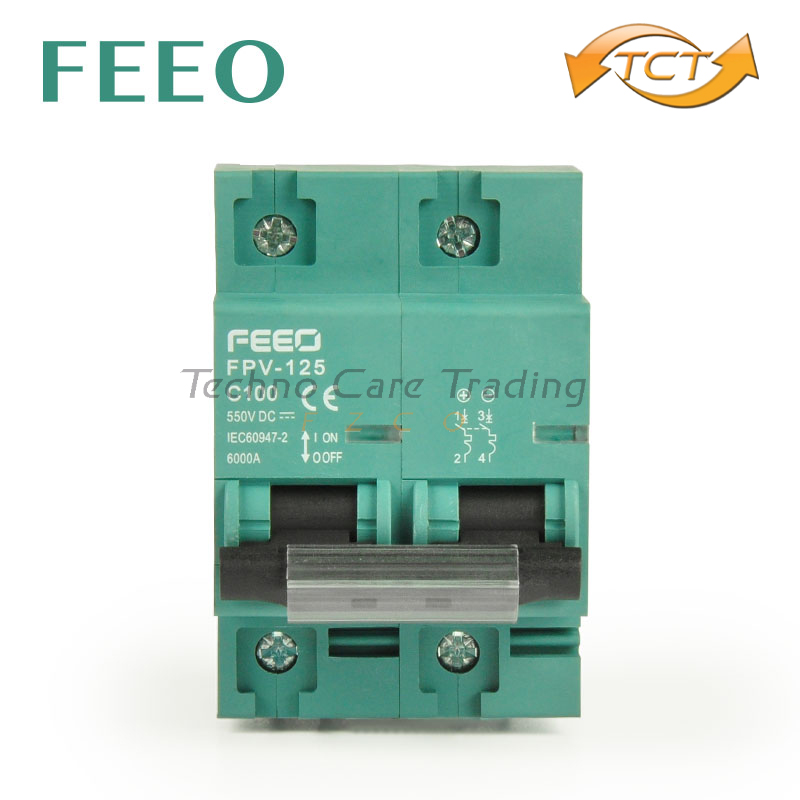

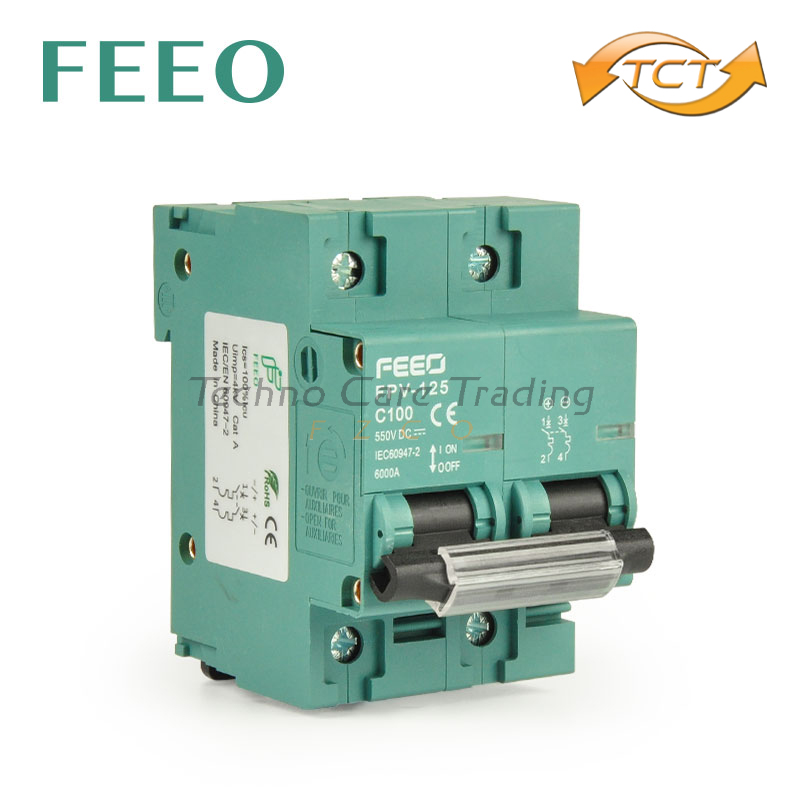

DC MCB FPV-125 Series 2 Pole
FPV-125 high breaking capacity circuit breaker is specially for solar PV system. The current is form 80A to 125A and voltage up to 550VDC. Standard according to IEC/EN60947-2.
