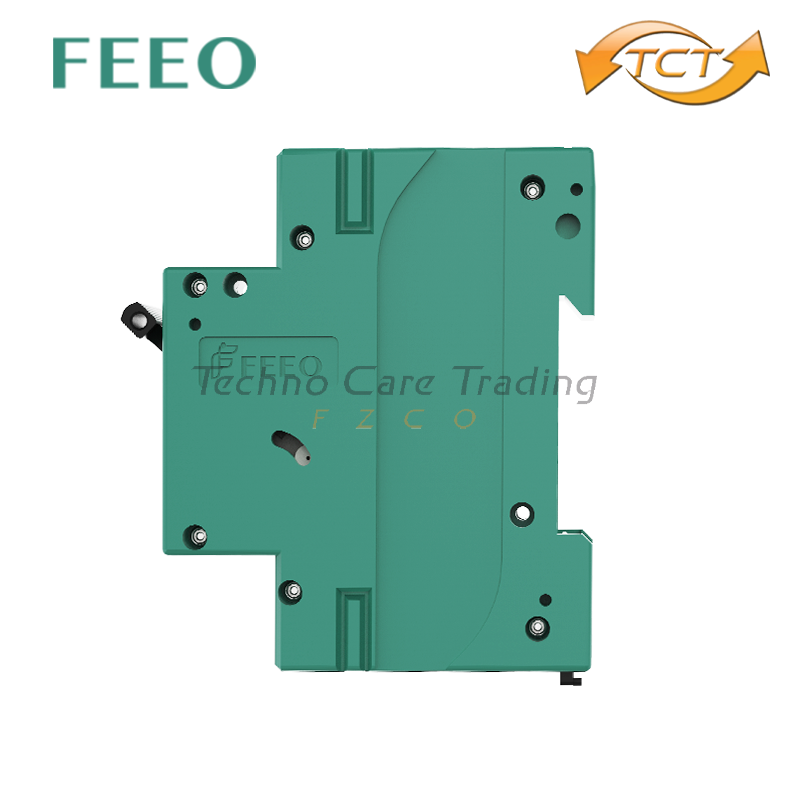

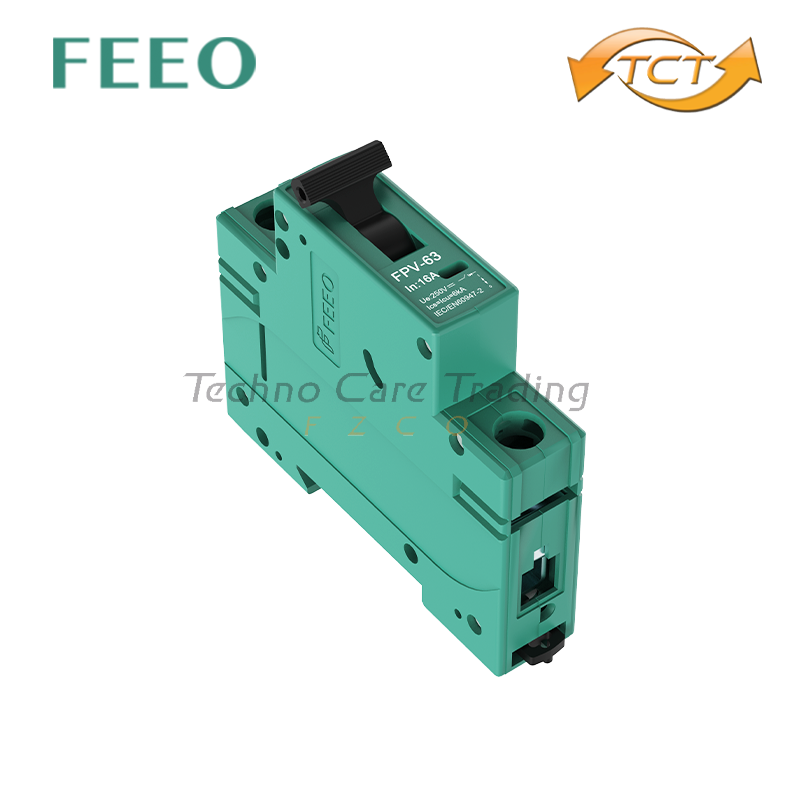

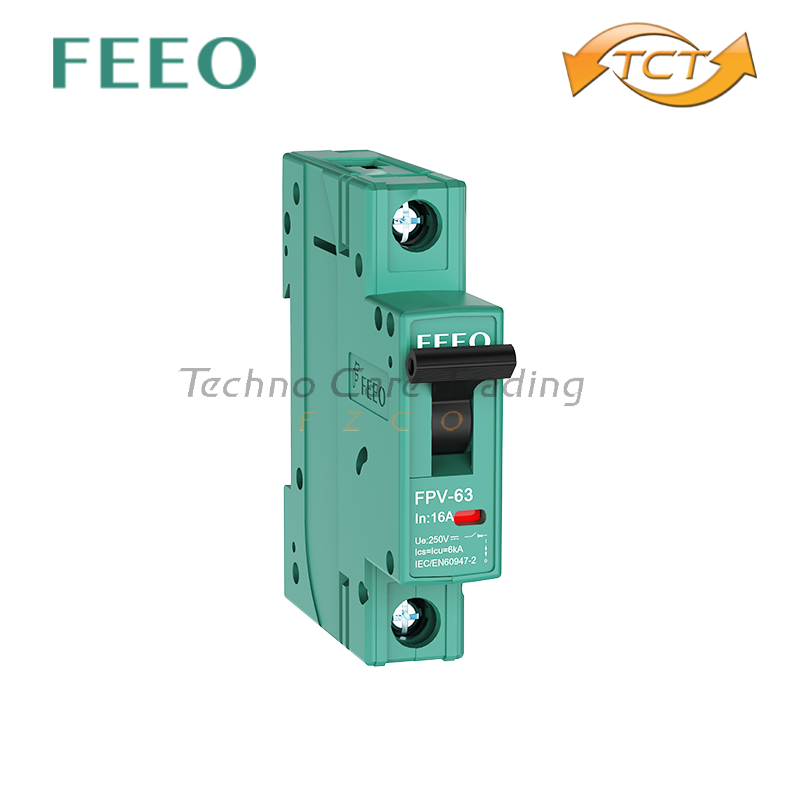

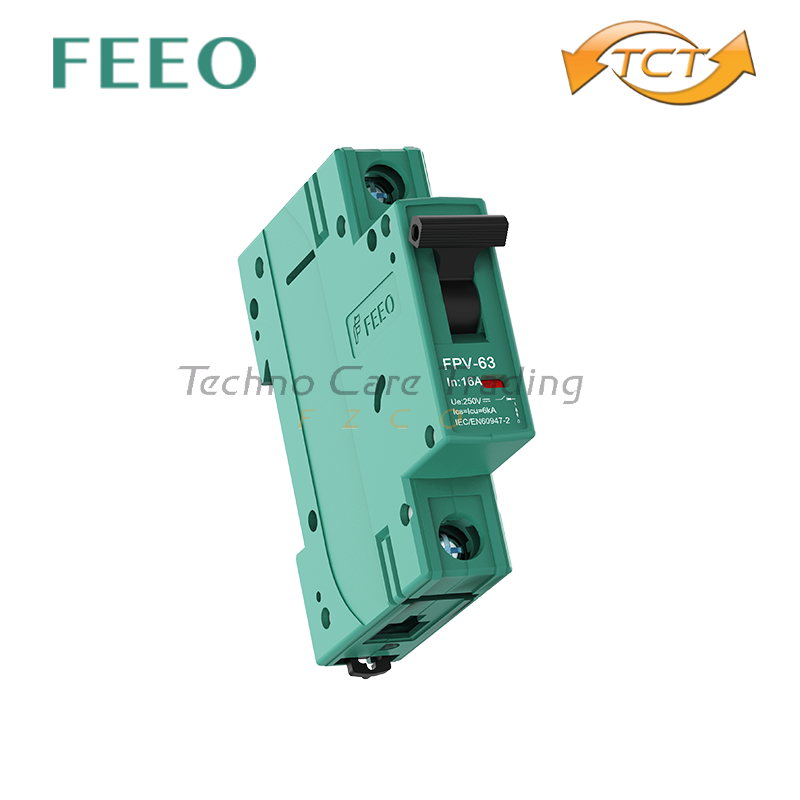

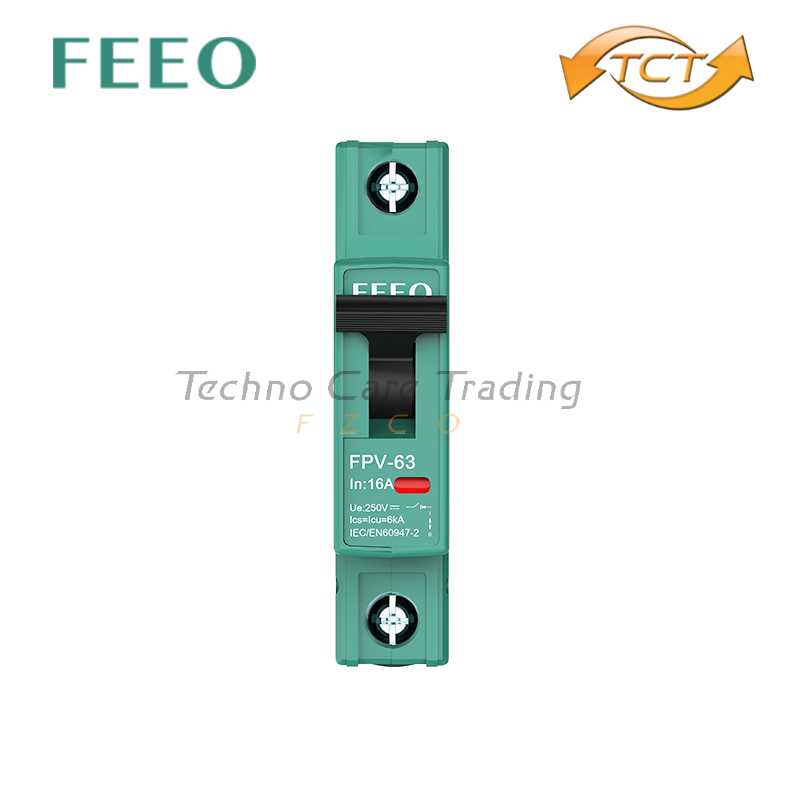

DC MCB FPV-63 Series 1 Pole
FEEO FPV-63 series of DC Mini Circuit Breaker(DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 1Pole can reach 250VDC.
- Frame Degree Rated Current (A): 63A
- No of Poles: 1p
- Rated Operating Voltage (V DC): 250V DC
- Rated Insulation Voltage Ui (V DC): 1200V DC
- Rated Current In (A): 3,6,10,16,20,25,32,40,50,63A
- Rated Impact Voltage Uimp (kV): 4kV
- Ultimate Breaking Capacity lcu (kA): 6kA
- Curve Type: C
- Dimensions (W)x(H)x(Deep): 18*80*71(mm)
- Weight(gr): 120(gr)
