Immersion Heater
د.إ0.000
| TEMPERATURE RANGE | CONTROL | |
| ON | OFF | |
| 60°F (16C) | 80°F (27C) | HLC-6 |
| 80°F (27C) | 100°F (38C) | HLC-8 |
| 100°F (38C) | 120°F (49C) | HLC-10 |
| ELECTRICAL RATING | ||
| 15 Amps at 120 Vac | ||
| 10 Amps at 240 Vac | ||
| 10 Amps at 277 Vac | ||

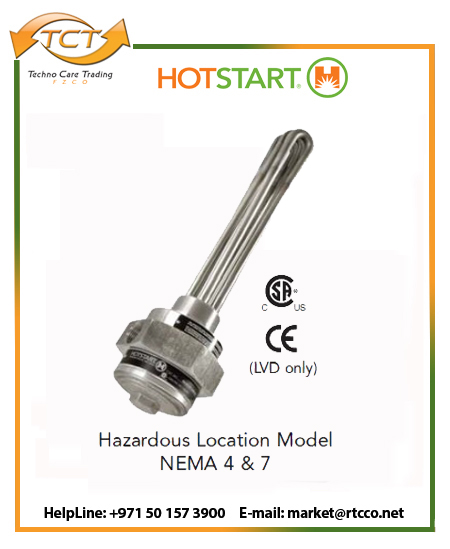

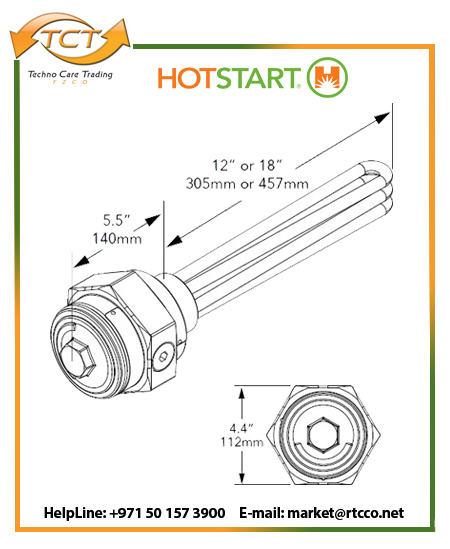

Hazardous Location models with thermostat also available.
Substitute the letter “W” in part number with the letter “E” to specify Hazardous Location models. Industrial Immersion Heaters are also available for coolants and other process heating.
Industrial immersion heaters are extremely efficient since all energy that is generated is transferred directly into the medium which is being heated.

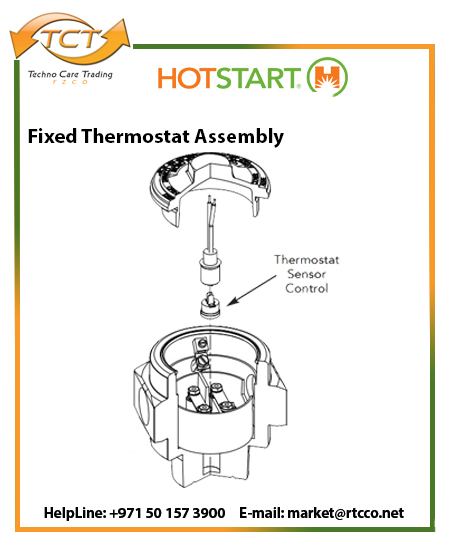

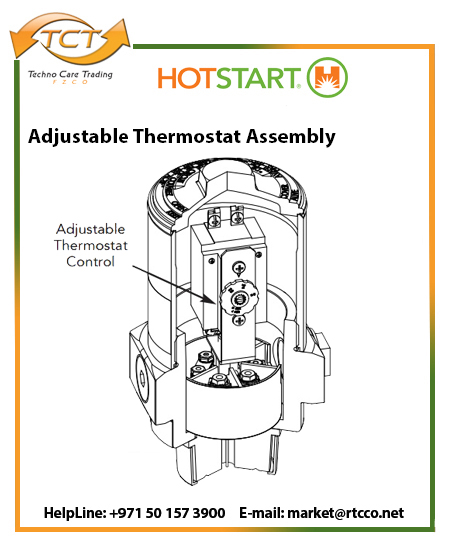

HOTSTART immersion heaters are manufactured with a fixed-setting thermostat and are available with an adjustable thermostat. Preheating hydraulic fluid and other vital liquids prevents gelling and eliminates condensation. All industrial immersion heaters are CSA c/us approved.
Call TCT for complete model number featuring adjustable thermostat.
| Power (Heater) | |
|---|---|
| Product Type | Genset |
| Oil Heater |
QR Code
Related Products
- desktop-columns-3 tablet-columns-2 mobile-columns-1
-
CB Model
د.إ0.000Availability: In stockOut of stock
3 Range Model:
- Fixed Thermostat:
80–100 °F (24–38°C)
100–120 °F (38–49 °C)
120–140 °F (49–60 °C)
-
WF 2073 Water Filter
د.إ0.000Availability: In stockOut of stock
WF2073
Media Type: Cellulose 60 23
Micron Rating: 60
Coolant Additive: 23 Units
Overall Height inch (mm): 5.43 (137.92)
Thread Size: 11/16-16 UN- 2B -
-
Battery Wraps
د.إ0.000Availability: In stockOut of stock
Prolong the life of your battery with HOTSTART thermal battery wraps with or without thermostat.
• Durable, fire-retardant vinyl cover that resists oils and acids.
• All standard battery pads and battery wraps come with 6’ (1.8m) grounded cord and plug.
• Fast, easy installation.
• Boosts battery cranking power as much as 75%. -
OCLE Model
د.إ0.000Availability: In stockOut of stock
Heating Fluid: Oil/Coolant
Heat Power: Oil 2.5 – 12 kW / Coolant 6 – 36 kW
Voltage Range: 208, 240, 440 – 480, 575 – 600 V
Temperature Controller: Adjustable 32 – 212 °F (0 – 100 °C)
Temperature Setting: Oil 105 °F (40 °C) / Coolant 120 °F (50 °C)
High-Limit Temperature Control: Adjustable 32–212 °F (0 – 100 °C)
High-Limit Temperature Setting: 195 °F (90 °C)
Fluid Capacity: 1 gal (3.8 L)
Pump Power: Oil 1 – 3 Hp (0.75 – 2.25 kW) Coolant 1 Hp (0.75 kW)
Maximum Pressure: 100 psi (690 kPa) -
Lube Oil Heater (Weathertight)
د.إ0.000Availability: In stockOut of stock
Temperature Range Code ON OFF 60°F (16C) 80°F (27C) 6 80°F (27C) 100°F(38C) 8 100°F(38C) 120°F (49C) 10 -
OSE Model
د.إ0.000Availability: In stockOut of stock
Heating Fluid: Oil
Heat Power: 1.5, 2.5 kW
Voltage Range: 480V/60Hz/3ph (Contact HOTSTART for other voltage requirements)
Temperature Controller: Adjustable 32°-212°F (0°-100°C)
Temperature Setting: 105°F (40°C)
High-Limit Temperature Control: Adj. 32°-212°F (0°-100°C)
High-Limit Temperature Setting: 195°F (90°C)
Fluid Capacity: 0.6 gal (2.2L)
Pump Power: 0.75, 2Hp (0.56, 1.5 kW) -
AF27993NF Air Filter
د.إ0.000Availability: In stockOut of stock
Features:
■ Nanofibre filter media provides the highest possible engine protection efficiency without compromising filter life
■ Pleat geometry, spacing and stabilization yields maximum filter performance and long life for lower equipment operating costs
■ Proven radial air filter seal ensures reliable fit in the SSG air housing and easy service events
■ Complete Fleetguard system solution including the AF27994 secondary filter and the SP1307 housing service cover -
COL Model
د.إ0.000Availability: In stockOut of stock
COL System Features
Weathertight components rated NEMA 12
Viton mechanical seal pumps for extended seal life and temperatures to 350°F
Flow detection switches for fail-safe operation
Pressure switch for automatic operation
Universal mounting for varied mounting configurations
100° to 120°F thermostat for coolant and 80° to 100°F oil thermostat
On/Off switch for coolant and oil heating operations
