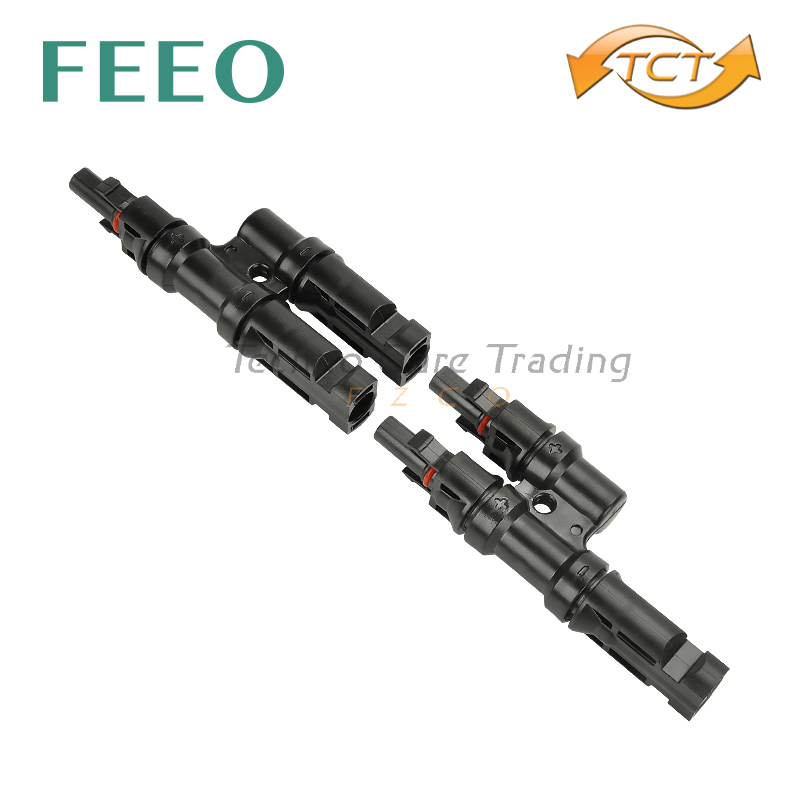

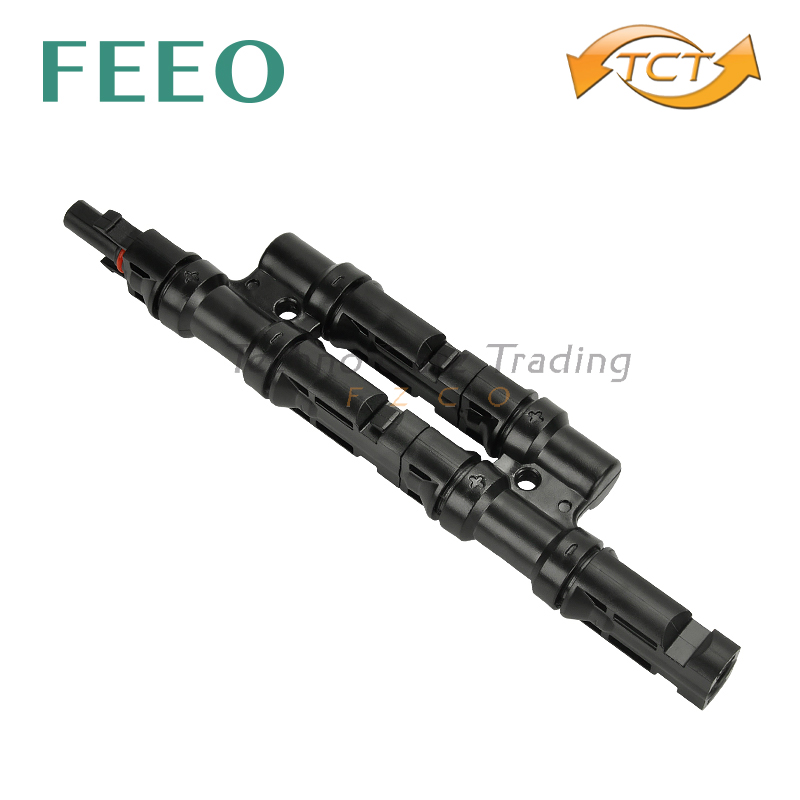

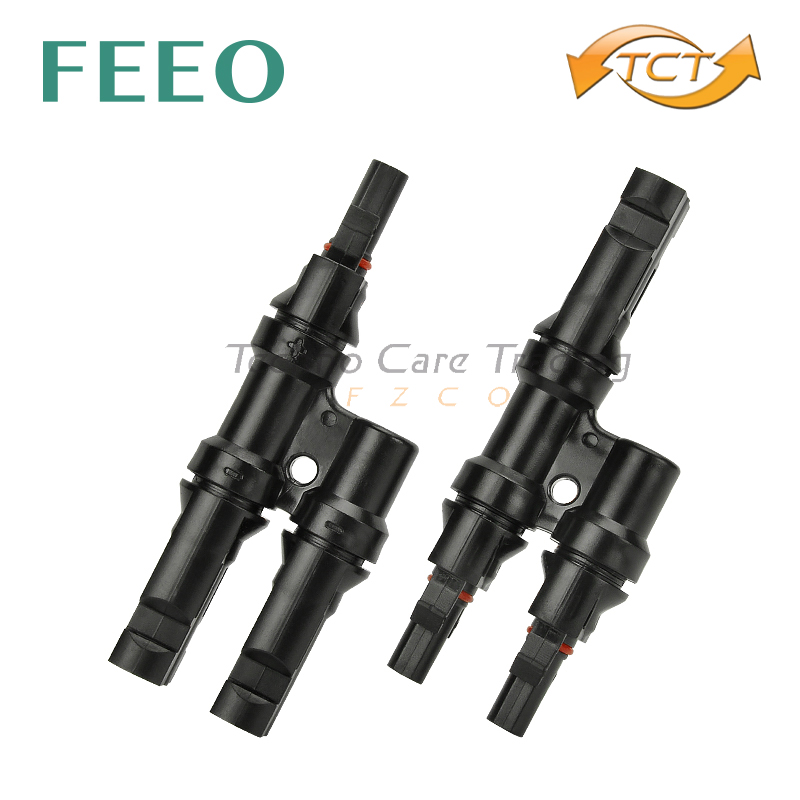

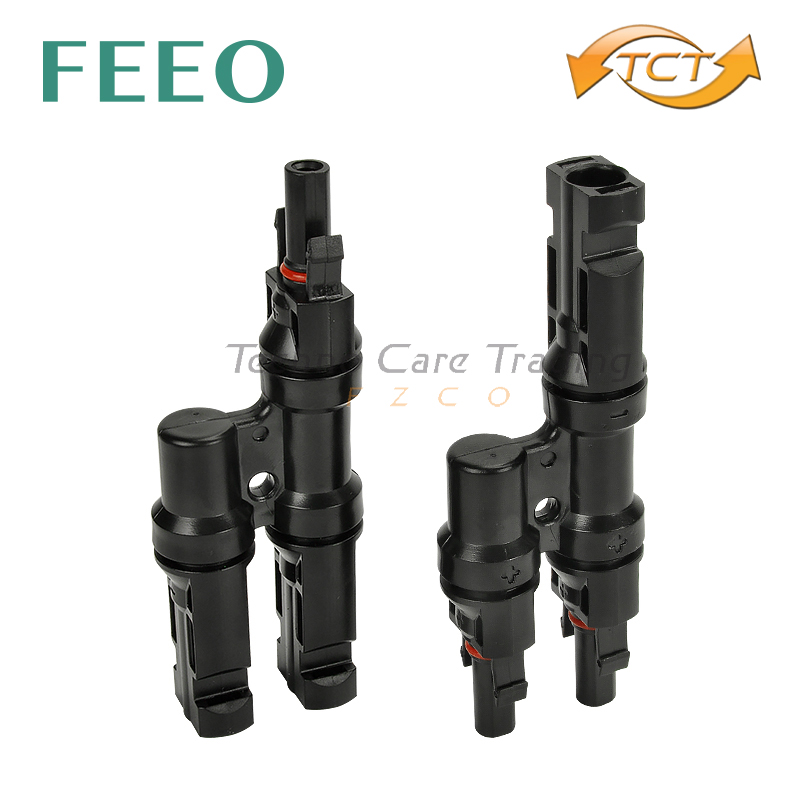

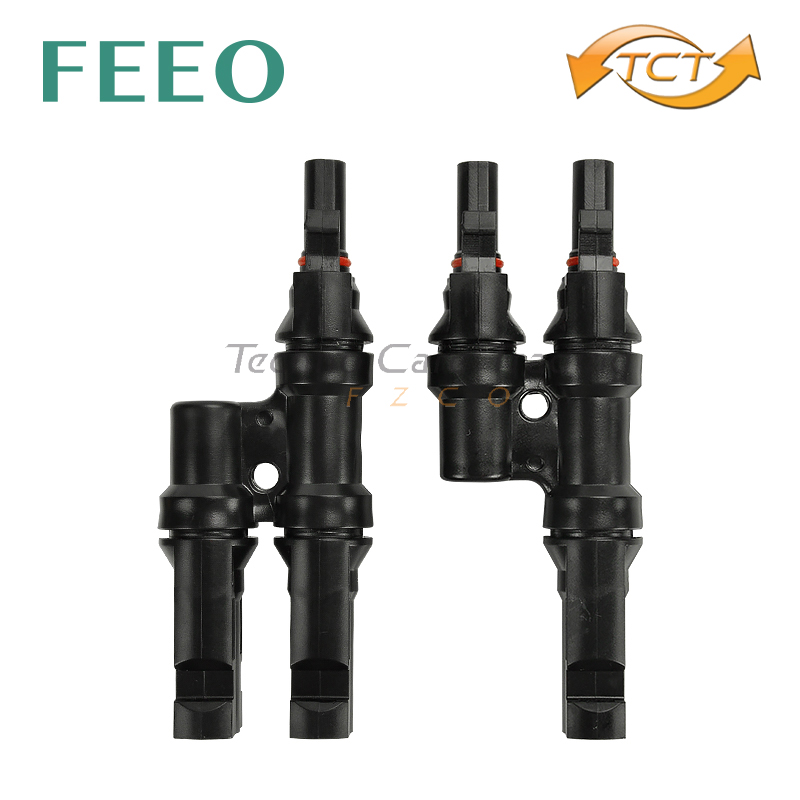

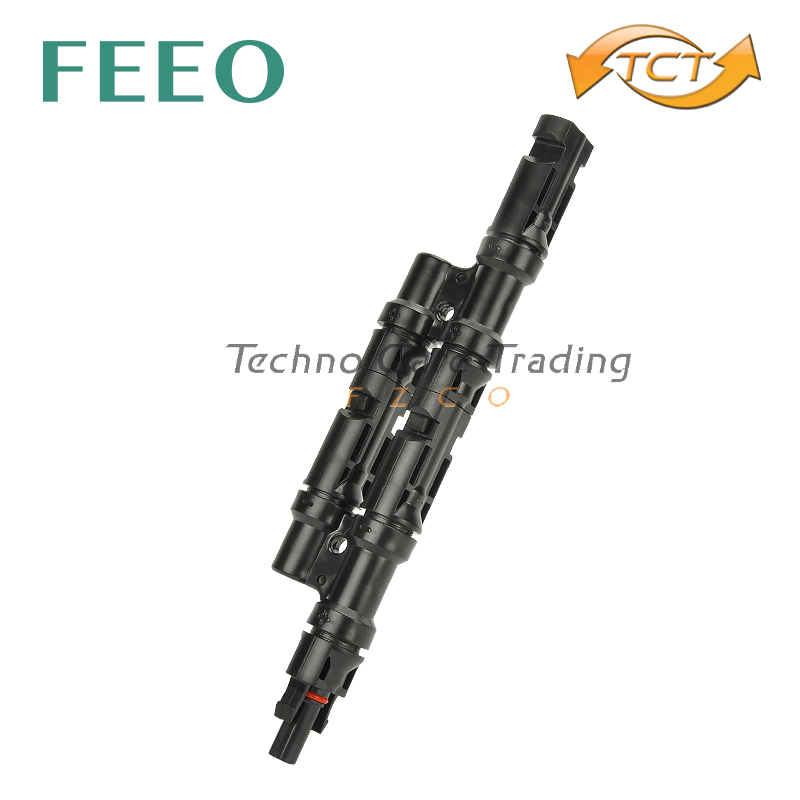

IP67 Branch Connector
FEEO series of T Branch is designed for solar system which can easily make 2 different cables into 1 single cable.
- Rated current(A): 30A
- Rated voltage(V DC): 1000V DC
- Test voltage: 6000V(50Hz, 1min)
- Contact resistance of plug connector: 1mΩ
- Contact material: Copper, Tin-plated
- Degree of protection: IP67
- Temperature range: -40℃ ~+110℃
