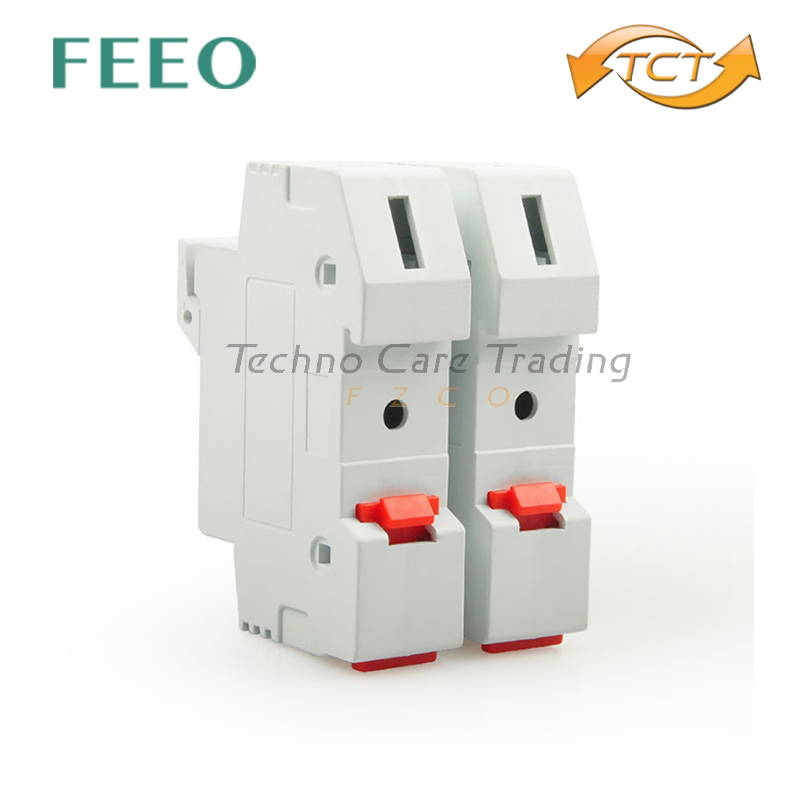

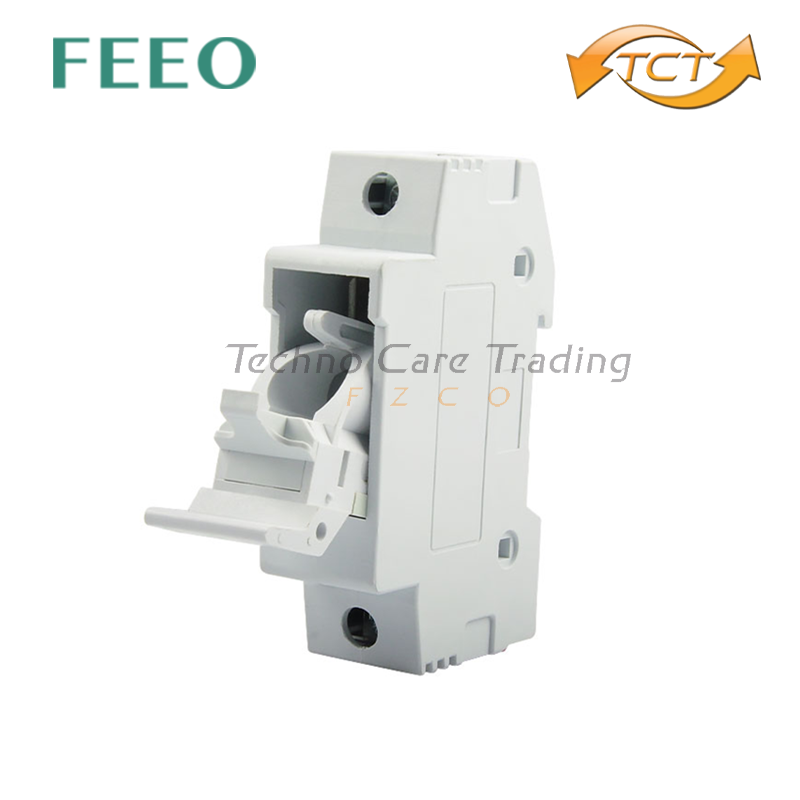

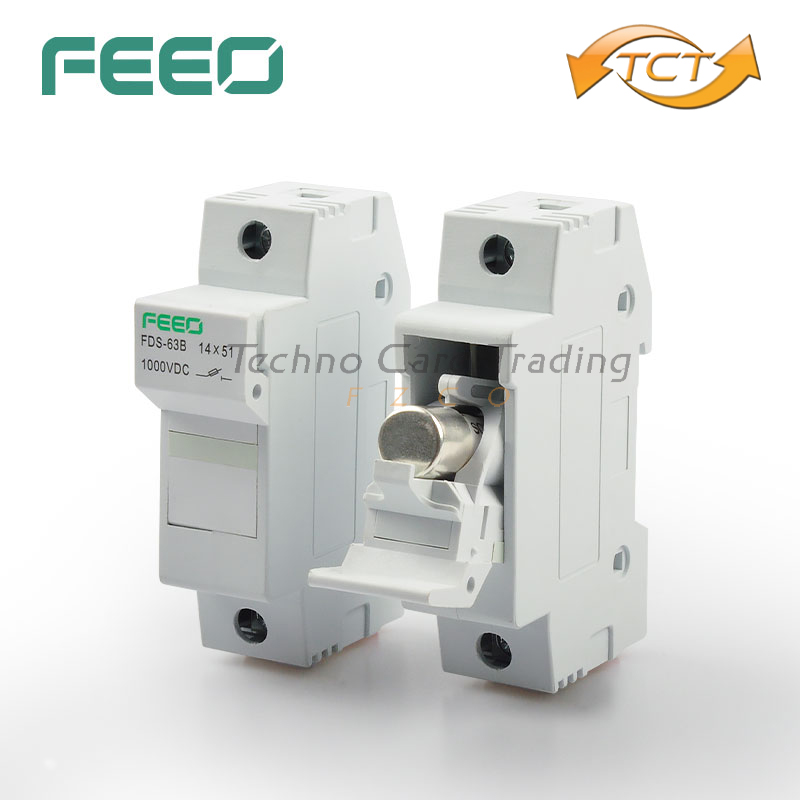

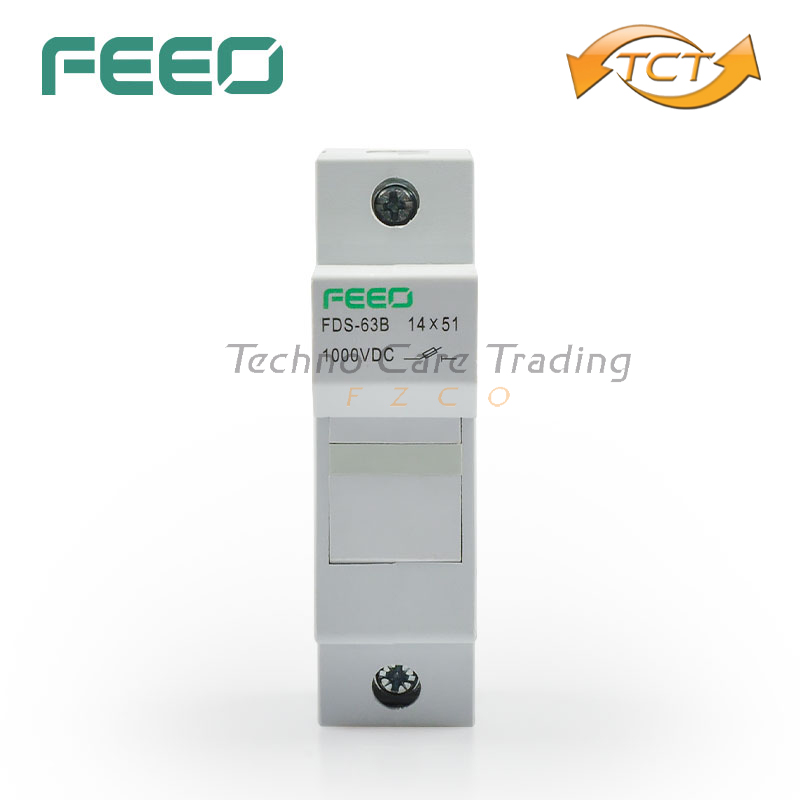

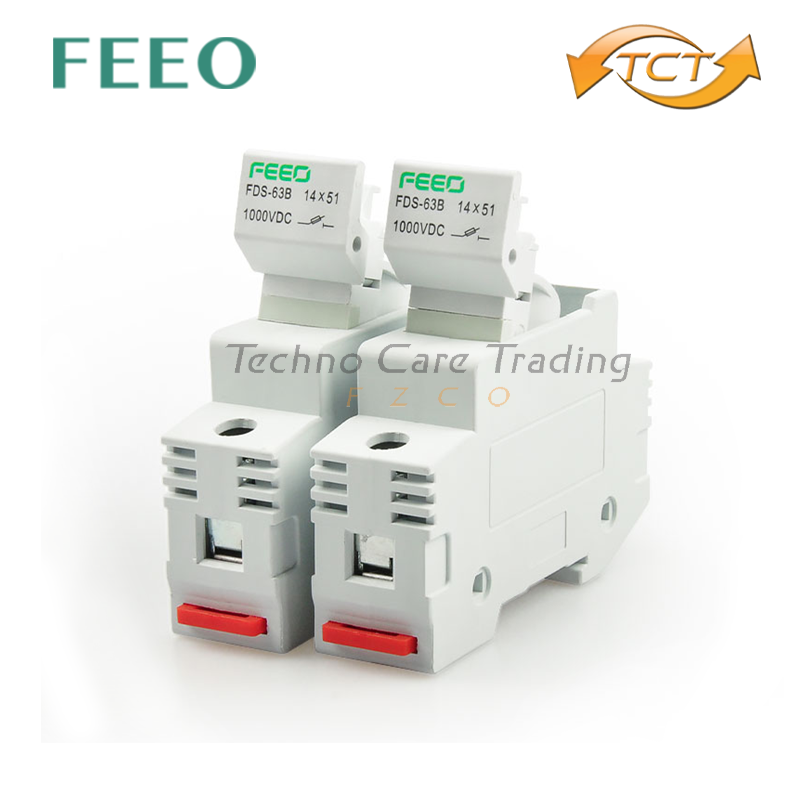

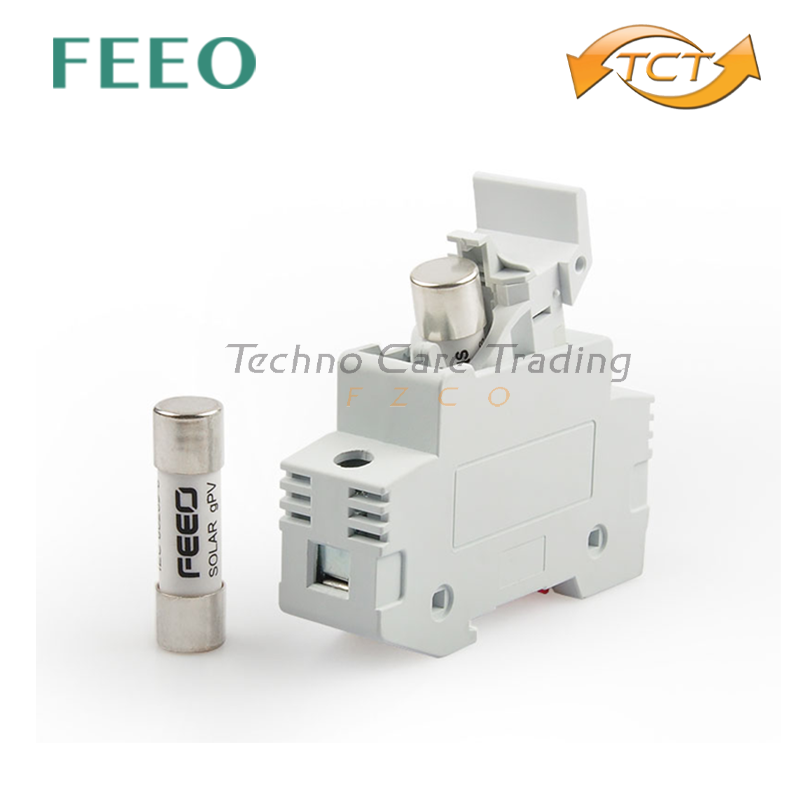

Solar DC Fuse FDS-63 Series
FEEO FDS-63 series of DC FUSE is designed for solar system. Rated Current contains:4A,6A,8A,10A,12A,16A,20A,25A,32A,40A,50A,63A Rated voltage is 1000VDC. Breaking Capacity:33KA
- Pole: 1Pole
- Rated Voltage Ue (V DC): 1000V DC
- Rated Current In (A): 4,6,8,10,12,16,20,25,32,40,50,63A
- Working Temperature(℃ ): -30~+70
- Protection Class/Degree: IP20
- Dimension: 22*66*96mm
QR Code
